Rule Types

• snort.conf
• so_rules
• preproc_rules

Snort Rules: Rule Actions and IP Protocols

The rule header stores a complete set of rules to identify a packet and determines the action to be performed or rule to be applied. It contains information that defines the who, where, and what of a packet, as well as what to do if a packet with all the attributes indicated in the rule should show up.

The first item in a rule is the rule action, which tells Snort what to do when it finds a packet that matches the rule criteria.

Snort Default Rule Actions

There are six available default actions in Snort:

1. alert
   • Purpose: Generates an alert when traffic matches a rule.
   • Usage: This action is commonly used to notify an administrator of suspicious activity without interfering with the traffic. Alerts are typically logged to a file or passed to a monitoring system like an IDS (Intrusion Detection System).
   • Example: Notifying about an attempted intrusion or other suspicious activity.
2. log
   • Purpose: Logs the traffic when a rule is matched but does not trigger an alert.
   • Usage: This action is used when you want to keep a record of the matching traffic for later analysis without creating an immediate alert.
   • Example: Logging traffic patterns for auditing or research purposes.
3. pass
   • Purpose: Ignores the matching traffic and does not take any action.
   • Usage: This action tells Snort to allow the traffic to pass through, even though it matches a rule. This can be useful in scenarios where a specific known benign traffic should not be logged or alerted upon.
   • Example: Disabling rules for trusted traffic like internal services.
4. drop
   • Purpose: Drops the matching traffic immediately without notifying the sender or logging the details.
   • Usage: This action is used in active defense, where traffic that matches a rule (e.g., an attack) is dropped, preventing further processing of that traffic.
   • Example: Blocking malicious traffic in real time.
5. reject
   • Purpose: Similar to drop, but in addition to discarding the traffic, it also sends a TCP reset (RST) packet to the sender to notify them that the connection has been reset.
   • Usage: This is used when you want to terminate a connection and inform the sender that their traffic is being actively rejected.
   • Example: Actively rejecting an attempted connection from an attacker.
6. sdrop
   • Purpose: Similar to drop, but it logs the dropped packets.
   • Usage: This action is used when you want to drop the traffic like in drop, but you also want to keep a log entry for the dropped traffic.
   • Example: Blocking unwanted traffic while still keeping a record for further analysis.

Snort Rules: IP Protocols

IP sends data from one system to another via the Internet. It supports unique addressing for every computer on a network. Data is organized into packets, each containing message data, source, destination, and more.

Snort supports three available IP protocols to tackle suspicious behavior:

• TCP (Transmission Control Protocol)

  • Connects two different hosts and exchanges data between them.

• UDP (User Datagram Protocol)

  • Used for broadcasting messages over a network.

• ICMP (Internet Control Message Protocol)

  • Used by operating systems to send error messages in a network.

Snort Rules: Direction Operator and IP Addresses

Direction Operator

This operator indicates the direction of interest for the traffic; traffic can flow either in a single direction or bidirectionally.

Example (Bidirectional Operator):

log tcp !192.168.1.0/24 any <> 192.168.1.0/24 23

IP Addresses

• Identify the IP address and port that the rule applies to.
• Use keyword any to define the IP address.
• Use numeric IP addresses qualified with a CIDR netmask.
• You can also use the negation operator ! to exclude an IP/range.

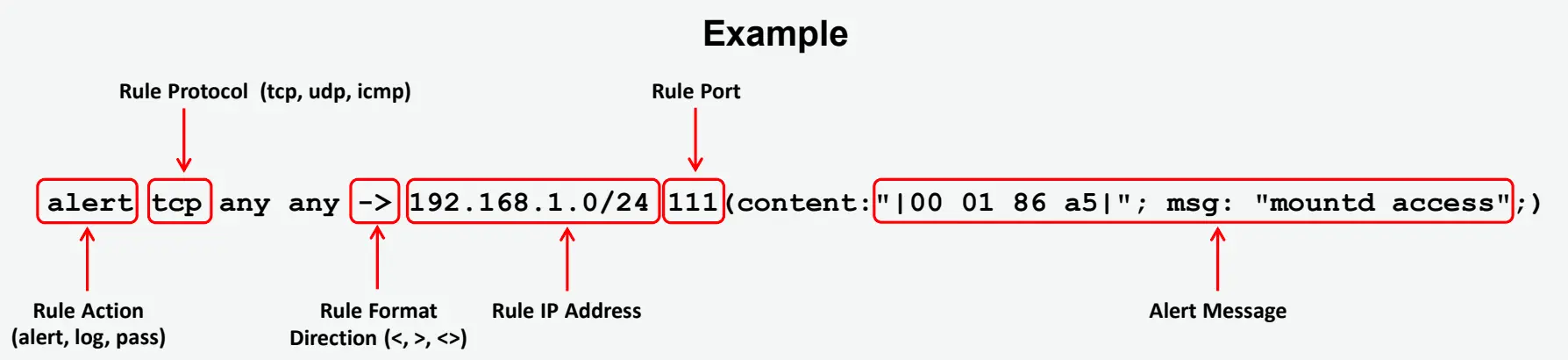

Example (IP Address Negation Rule):

alert tcp !192.168.1.0/24 any -> 192.168.1.0/24 111 (content: "|00 01 86 a5|"; msg: "external mountd access";)

Snort Rules: Port Numbers

Port numbers can be listed in different ways:

• any ports
• Static port definitions
• Port ranges (: operator)
• Negation (!)

The direction operator -> indicates the orientation/direction of the traffic.

• Left side = source host (IP + port)
• Right side = destination host (IP + port)

For bidirectional rules, use the operator <-> (there is no <- operator).

Multiple IPs

Snort can handle:

• A single IP address
• A list of addresses (comma separated, inside [])
• CIDR ranges
• CIDR ranges inside lists

Example (IP List):

[192.168.1.1,192.168.1.45,10.1.1.24]

Examples of Port Negation

log tcp any -> 192.168.1.0/24 !6000:6010

Protocols and Examples
